Class 13 - RNA Seq Data
Ana Karolina Navarro (PID: A19106745)
Background
Today we will perform an RNASeq analysis of the effects of a common steroid on airway cells.
In paerticular, dexamethasone (herafter just called “dex”) on different airway smooth muscle cell lines (ASM cells).
Data Import
We need two different inputs:
- countData: with genes in rows and experiments in columns
- colData: meta data that described the columns in countData
counts <- read.csv("airway_scaledcounts.csv", row.names=1)
metadata <- read.csv("airway_metadata.csv")
head(counts)
SRR1039508 SRR1039509 SRR1039512 SRR1039513 SRR1039516
ENSG00000000003 723 486 904 445 1170
ENSG00000000005 0 0 0 0 0
ENSG00000000419 467 523 616 371 582
ENSG00000000457 347 258 364 237 318
ENSG00000000460 96 81 73 66 118
ENSG00000000938 0 0 1 0 2
SRR1039517 SRR1039520 SRR1039521
ENSG00000000003 1097 806 604
ENSG00000000005 0 0 0
ENSG00000000419 781 417 509
ENSG00000000457 447 330 324
ENSG00000000460 94 102 74
ENSG00000000938 0 0 0
metadata
id dex celltype geo_id
1 SRR1039508 control N61311 GSM1275862
2 SRR1039509 treated N61311 GSM1275863
3 SRR1039512 control N052611 GSM1275866
4 SRR1039513 treated N052611 GSM1275867
5 SRR1039516 control N080611 GSM1275870
6 SRR1039517 treated N080611 GSM1275871
7 SRR1039520 control N061011 GSM1275874
8 SRR1039521 treated N061011 GSM1275875
head(metadata)
id dex celltype geo_id
1 SRR1039508 control N61311 GSM1275862
2 SRR1039509 treated N61311 GSM1275863
3 SRR1039512 control N052611 GSM1275866
4 SRR1039513 treated N052611 GSM1275867
5 SRR1039516 control N080611 GSM1275870
6 SRR1039517 treated N080611 GSM1275871
Q.1 How many genes are in this dataset?
nrow(counts)
[1] 38694
Q.2 How many ‘control’ cell lines do we have?
table(metadata$dex)
control treated
4 4
OR
sum(metadata$dex == "control")
[1] 4
Differential Gene Expression
We have 4 replicate drug treated and control (no drug)
columns/experiments in our counts object.
We want one “mean” value for each gene (rows) in “treated” (drug) and one mean value for each gene in “control” cols
Step 1. Find all “control” columns Step 2. Extract these columns to a
new object called control.counts Step 3. Then calculate the mean value
for each gene
Q.3 How would you make either approach more robust? Is there a function that could help here? rowMeans()
Step 1.
contol.inds<- metadata$dex == "control"
Step 2.
control.counts <- counts[ , contol.inds]
head(control.counts)
SRR1039508 SRR1039512 SRR1039516 SRR1039520
ENSG00000000003 723 904 1170 806
ENSG00000000005 0 0 0 0
ENSG00000000419 467 616 582 417
ENSG00000000457 347 364 318 330
ENSG00000000460 96 73 118 102
ENSG00000000938 0 1 2 0
Step 3.
control.means <- rowMeans(control.counts)
Q.4 Now do the same thing for the “treated” coulumns/experiments
Step 1.
treat.inds<- metadata$dex == "treated"
Step 2.
treat.counts <- counts[ , treat.inds]
head(treat.counts)
SRR1039509 SRR1039513 SRR1039517 SRR1039521
ENSG00000000003 486 445 1097 604
ENSG00000000005 0 0 0 0
ENSG00000000419 523 371 781 509
ENSG00000000457 258 237 447 324
ENSG00000000460 81 66 94 74
ENSG00000000938 0 0 0 0
Step 3.
treat.means <- rowMeans(treat.counts)
Put these together for easy book-seeping as meancounts
meancounts <- data.frame (control.means, treat.means)
Q.5a Create a scatter plot showing the mean of the treated samples against the mean of the control samples. Your plot should look something like the following.
plot (meancounts)
Q.5b You could also use the ggplot2 package to make this figure producing the plot below. What geom_?() function would you use for this plot? geom_point()
Let’s log transform this count data:
Q6. Try plotting both axes on a log scale. What is the argument to plot() that allows you to do this? log =
plot(meancounts, log = "xy")
Warning in xy.coords(x, y, xlabel, ylabel, log): 15032 x values <= 0 omitted
from logarithmic plot
Warning in xy.coords(x, y, xlabel, ylabel, log): 15281 y values <= 0 omitted
from logarithmic plot
N.B. We most often use log2 for this type of data as it makes the interpretation much more straightforward.
Treated/Controlled is often called “fold-change”.
If there was no change we would have log2-fc of zero:
log2(10/10)
[1] 0
If we had double the amount of transcript around we would have log2-fc of 1
log2(20/10)
[1] 1
If we would have half as mcuh transciprt around we would have log2-fc of -1
log2(5/10)
[1] -1
Q. calculate a log2 fold change value for all our genes and add it as a new column to our
meancountsobject
meancounts$log2f <- log2( meancounts$treat.means / meancounts$control.means )
head(meancounts)
control.means treat.means log2f
ENSG00000000003 900.75 658.00 -0.45303916
ENSG00000000005 0.00 0.00 NaN
ENSG00000000419 520.50 546.00 0.06900279
ENSG00000000457 339.75 316.50 -0.10226805
ENSG00000000460 97.25 78.75 -0.30441833
ENSG00000000938 0.75 0.00 -Inf
zero.vals <- which(meancounts[,1:2]==0, arr.ind=TRUE)
to.rm <- unique(zero.vals[,1])
mycounts <- meancounts[-to.rm,]
head(mycounts)
control.means treat.means log2f
ENSG00000000003 900.75 658.00 -0.45303916
ENSG00000000419 520.50 546.00 0.06900279
ENSG00000000457 339.75 316.50 -0.10226805
ENSG00000000460 97.25 78.75 -0.30441833
ENSG00000000971 5219.00 6687.50 0.35769358
ENSG00000001036 2327.00 1785.75 -0.38194109
Q7. What is the purpose of the arr.ind argument in the which() function call above? Why would we then take the first column of the output and need to call the unique() function? To get matrix of row and column indices where condition is TRUE. unique() removes duplicate rows when condition is TRUE multiple times in different columns.
Q8. Using the up.ind vector above can you determine how many up regulated genes we have at the greater than 2 fc level?
Q9. Using the down.ind vector above can you determine how many down regulated genes we have at the greater than 2 fc level?
up.ind <- mycounts$log2fc > 2
down.ind <- mycounts$log2fc < (-2)
[1] “Up: 250” [1] “Down: 367”
Q10. Do you trust these results? Why or why not? We have not done anything yet to determine whether the differences we are seeing are significant. These results in their current form are likely to be very misleading.
DESeq analysis
Let’ do this analysis with an estimate of stastical signficance using the DESeq2 pasckage.
library(DESeq2)
DESeq (like many bioconductor oackages) wants its input data in a very specific way.
dds <- DESeqDataSetFromMatrix(countData = counts,
colData = metadata,
design = ~dex)
converting counts to integer mode
Warning in DESeqDataSet(se, design = design, ignoreRank): some variables in
design formula are characters, converting to factors
Run the DESeq analysis pipeline
The main function deseq()
dds <- DESeq(dds)
estimating size factors
estimating dispersions
gene-wise dispersion estimates
mean-dispersion relationship
final dispersion estimates
fitting model and testing
results(dds)
log2 fold change (MLE): dex treated vs control
Wald test p-value: dex treated vs control
DataFrame with 38694 rows and 6 columns
baseMean log2FoldChange lfcSE stat pvalue
<numeric> <numeric> <numeric> <numeric> <numeric>
ENSG00000000003 747.1942 -0.3507030 0.168246 -2.084470 0.0371175
ENSG00000000005 0.0000 NA NA NA NA
ENSG00000000419 520.1342 0.2061078 0.101059 2.039475 0.0414026
ENSG00000000457 322.6648 0.0245269 0.145145 0.168982 0.8658106
ENSG00000000460 87.6826 -0.1471420 0.257007 -0.572521 0.5669691
... ... ... ... ... ...
ENSG00000283115 0.000000 NA NA NA NA
ENSG00000283116 0.000000 NA NA NA NA
ENSG00000283119 0.000000 NA NA NA NA
ENSG00000283120 0.974916 -0.668258 1.69456 -0.394354 0.693319
ENSG00000283123 0.000000 NA NA NA NA
padj
<numeric>
ENSG00000000003 0.163035
ENSG00000000005 NA
ENSG00000000419 0.176032
ENSG00000000457 0.961694
ENSG00000000460 0.815849
... ...
ENSG00000283115 NA
ENSG00000283116 NA
ENSG00000283119 NA
ENSG00000283120 NA
ENSG00000283123 NA
res <- results(dds)
head(res)
log2 fold change (MLE): dex treated vs control
Wald test p-value: dex treated vs control
DataFrame with 6 rows and 6 columns
baseMean log2FoldChange lfcSE stat pvalue
<numeric> <numeric> <numeric> <numeric> <numeric>
ENSG00000000003 747.194195 -0.3507030 0.168246 -2.084470 0.0371175
ENSG00000000005 0.000000 NA NA NA NA
ENSG00000000419 520.134160 0.2061078 0.101059 2.039475 0.0414026
ENSG00000000457 322.664844 0.0245269 0.145145 0.168982 0.8658106
ENSG00000000460 87.682625 -0.1471420 0.257007 -0.572521 0.5669691
ENSG00000000938 0.319167 -1.7322890 3.493601 -0.495846 0.6200029
padj
<numeric>
ENSG00000000003 0.163035
ENSG00000000005 NA
ENSG00000000419 0.176032
ENSG00000000457 0.961694
ENSG00000000460 0.815849
ENSG00000000938 NA
Volcano Plot
This is a main summary results figure from these kinds of studies. It is a plot of Log2- fold-change vs P-value.
plot(res$log2FoldChange,
res$padj)
Again this y-axis is highly skewed and needs log transforming and we can flip the y-axis with a minus sign so it looks lke every other volcano plot.
plot(res$log2FoldChange,
-log(res$padj))
abline(v=-2, col="red")
abline(v=+2, col="red")
abline(h=-log(0.05), col="red")
Adding some color annotation
Start with a default base color “grey”
mycols <- rep("gray", nrow(res))
mycols[ res$log2FoldChange > 2] <- "blue"
mycols[ res$log2FoldChange < -2] <- "darkgreen"
mycols[ res$padj >= 0.05 ] <-"gray"
head(res$log2FoldChange > 2)
[1] FALSE NA FALSE FALSE FALSE FALSE
plot(res$log2FoldChange,
-log(res$padj),
col=mycols)
abline(v=c(-2, +2), lty=2)
abline(h=-log(0.05), lty=2)
Q.Make a presentation quality ggplot version of this plot. Include clear axis labels, a clean theme, your custom colors, cut-off lines and a plot title.
library(ggplot2)
ggplot(res) +
aes(log2FoldChange,
-log(padj)) +
geom_point(colour = mycols) +
labs(x="Log2 Fold-change",
y="-log Adjusted P-value",
title = "Volcano Plot of Differential Gene Expression") +
theme_minimal(base_size = 12) +
theme(
plot.title = element_text(face = "bold", hjust = 0.5),
axis.title = element_text(face = "bold"),
legend.title = element_text(face = "bold"),
panel.grid.minor = element_blank()
)
Warning: Removed 23549 rows containing missing values or values outside the scale range
(`geom_point()`).
Save our results
Write a CSV file
write.csv(res, file="results.csv")
Add Annotation Data
We need to add missing annotation data to our main res results object.
This includes the common gene “symbol”
head(res)
log2 fold change (MLE): dex treated vs control
Wald test p-value: dex treated vs control
DataFrame with 6 rows and 6 columns
baseMean log2FoldChange lfcSE stat pvalue
<numeric> <numeric> <numeric> <numeric> <numeric>
ENSG00000000003 747.194195 -0.3507030 0.168246 -2.084470 0.0371175
ENSG00000000005 0.000000 NA NA NA NA
ENSG00000000419 520.134160 0.2061078 0.101059 2.039475 0.0414026
ENSG00000000457 322.664844 0.0245269 0.145145 0.168982 0.8658106
ENSG00000000460 87.682625 -0.1471420 0.257007 -0.572521 0.5669691
ENSG00000000938 0.319167 -1.7322890 3.493601 -0.495846 0.6200029
padj
<numeric>
ENSG00000000003 0.163035
ENSG00000000005 NA
ENSG00000000419 0.176032
ENSG00000000457 0.961694
ENSG00000000460 0.815849
ENSG00000000938 NA
We will use R and bioconductor to do this “ID mapping”
library("AnnotationDbi")
library("org.Hs.eg.db")
columns(org.Hs.eg.db)
[1] "ACCNUM" "ALIAS" "ENSEMBL" "ENSEMBLPROT" "ENSEMBLTRANS"
[6] "ENTREZID" "ENZYME" "EVIDENCE" "EVIDENCEALL" "GENENAME"
[11] "GENETYPE" "GO" "GOALL" "IPI" "MAP"
[16] "OMIM" "ONTOLOGY" "ONTOLOGYALL" "PATH" "PFAM"
[21] "PMID" "PROSITE" "REFSEQ" "SYMBOL" "UCSCKG"
[26] "UNIPROT"
We can use the mapIds() function now to “translate” between any of
these databases
res$symbol <- mapIds(org.Hs.eg.db,
keys=row.names(res), # Our genenames
keytype="ENSEMBL", # Their format
column="SYMBOL",) # Format we want
'select()' returned 1:many mapping between keys and columns
Q. Also add “ENTREZID”, “GENENAME”
res$entrez <- mapIds(org.Hs.eg.db,
keys=row.names(res), # Our genenames
keytype="ENSEMBL", # Their format
column="ENTREZID",) # Format we want
'select()' returned 1:many mapping between keys and columns
res$genename <- mapIds(org.Hs.eg.db,
keys=row.names(res), # Our genenames
keytype="ENSEMBL", # Their format
column="GENENAME",) # Format we want
'select()' returned 1:many mapping between keys and columns
head(res)
log2 fold change (MLE): dex treated vs control
Wald test p-value: dex treated vs control
DataFrame with 6 rows and 9 columns
baseMean log2FoldChange lfcSE stat pvalue
<numeric> <numeric> <numeric> <numeric> <numeric>
ENSG00000000003 747.194195 -0.3507030 0.168246 -2.084470 0.0371175
ENSG00000000005 0.000000 NA NA NA NA
ENSG00000000419 520.134160 0.2061078 0.101059 2.039475 0.0414026
ENSG00000000457 322.664844 0.0245269 0.145145 0.168982 0.8658106
ENSG00000000460 87.682625 -0.1471420 0.257007 -0.572521 0.5669691
ENSG00000000938 0.319167 -1.7322890 3.493601 -0.495846 0.6200029
padj symbol entrez genename
<numeric> <character> <character> <character>
ENSG00000000003 0.163035 TSPAN6 7105 tetraspanin 6
ENSG00000000005 NA TNMD 64102 tenomodulin
ENSG00000000419 0.176032 DPM1 8813 dolichyl-phosphate m..
ENSG00000000457 0.961694 SCYL3 57147 SCY1 like pseudokina..
ENSG00000000460 0.815849 FIRRM 55732 FIGNL1 interacting r..
ENSG00000000938 NA FGR 2268 FGR proto-oncogene, ..
Save Annotated Results to a CSV file
write.csv(res, file="results_annotated.csv")
Pathway Analysis
Q. What known biological pathway do our differentially expressed genes overlap with (i.e play a role in)?
There’s lots of bioconductor packages to do this type of analysis.
We will use one of the oldest called gage along with pathview to render nice pics of the pathways we find.
We can install these with the comman BiocManager::Install()
library(pathview)
library(gage)
library(gageData)
# Examine the first 2 pathways in this kegg set for humans
data(kegg.sets.hs)
head(kegg.sets.hs, 2)
$`hsa00232 Caffeine metabolism`
[1] "10" "1544" "1548" "1549" "1553" "7498" "9"
$`hsa00983 Drug metabolism - other enzymes`
[1] "10" "1066" "10720" "10941" "151531" "1548" "1549" "1551"
[9] "1553" "1576" "1577" "1806" "1807" "1890" "221223" "2990"
[17] "3251" "3614" "3615" "3704" "51733" "54490" "54575" "54576"
[25] "54577" "54578" "54579" "54600" "54657" "54658" "54659" "54963"
[33] "574537" "64816" "7083" "7084" "7172" "7363" "7364" "7365"
[41] "7366" "7367" "7371" "7372" "7378" "7498" "79799" "83549"
[49] "8824" "8833" "9" "978"
The main gage() function that does the work wants a simple vector as
input.
foldchanges <- res$log2FoldChange
names(foldchanges) <- res$symbol
head(foldchanges)
TSPAN6 TNMD DPM1 SCYL3 FIRRM FGR
-0.35070302 NA 0.20610777 0.02452695 -0.14714205 -1.73228897
The Keg database uses ENTREZ ids so we need to provide these in our input
names(foldchanges) <- res$entrez
Now we can run gage()
# Get the results
keggres = gage(foldchanges, gsets=kegg.sets.hs)
What is in the output object keggres
attributes(keggres)
$names
[1] "greater" "less" "stats"
# Look at the first three down (less) pathways
head(keggres$less, 3)
p.geomean stat.mean p.val
hsa05332 Graft-versus-host disease 0.0004250461 -3.473346 0.0004250461
hsa04940 Type I diabetes mellitus 0.0017820293 -3.002352 0.0017820293
hsa05310 Asthma 0.0020045888 -3.009050 0.0020045888
q.val set.size exp1
hsa05332 Graft-versus-host disease 0.09053483 40 0.0004250461
hsa04940 Type I diabetes mellitus 0.14232581 42 0.0017820293
hsa05310 Asthma 0.14232581 29 0.0020045888
We can use pathview function to render a figure of any of these pathways along with annotation for our DEGs

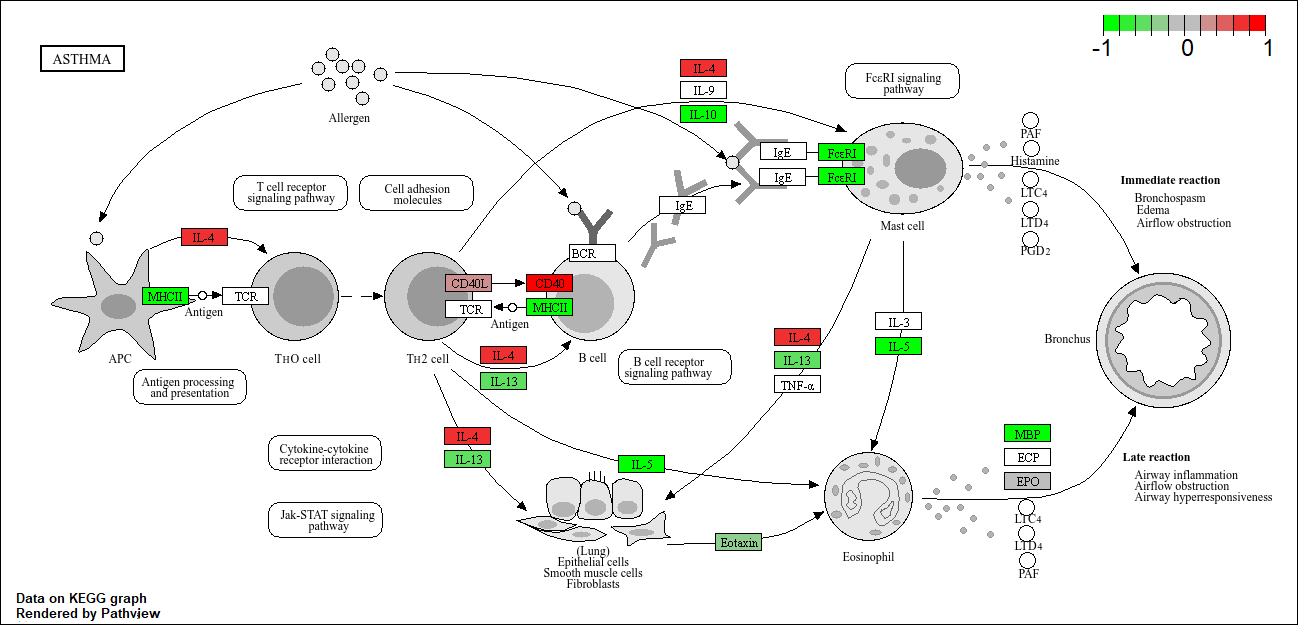

Let’s see the hsa05310 Asthma pathway with our DEGs colored up:
pathview(gene.data=foldchanges, pathway.id="hsa05310")
'select()' returned 1:1 mapping between keys and columns
Info: Working in directory C:/Users/anaka/OneDrive/Desktop/BIMM 143 R WORKSPACE/bimm143_github_redo/class13
Info: Writing image file hsa05310.pathview.png
Q. Can you render and insert here the pathway figure for “Graft-versus-host disease” and “Type I diabetes”?

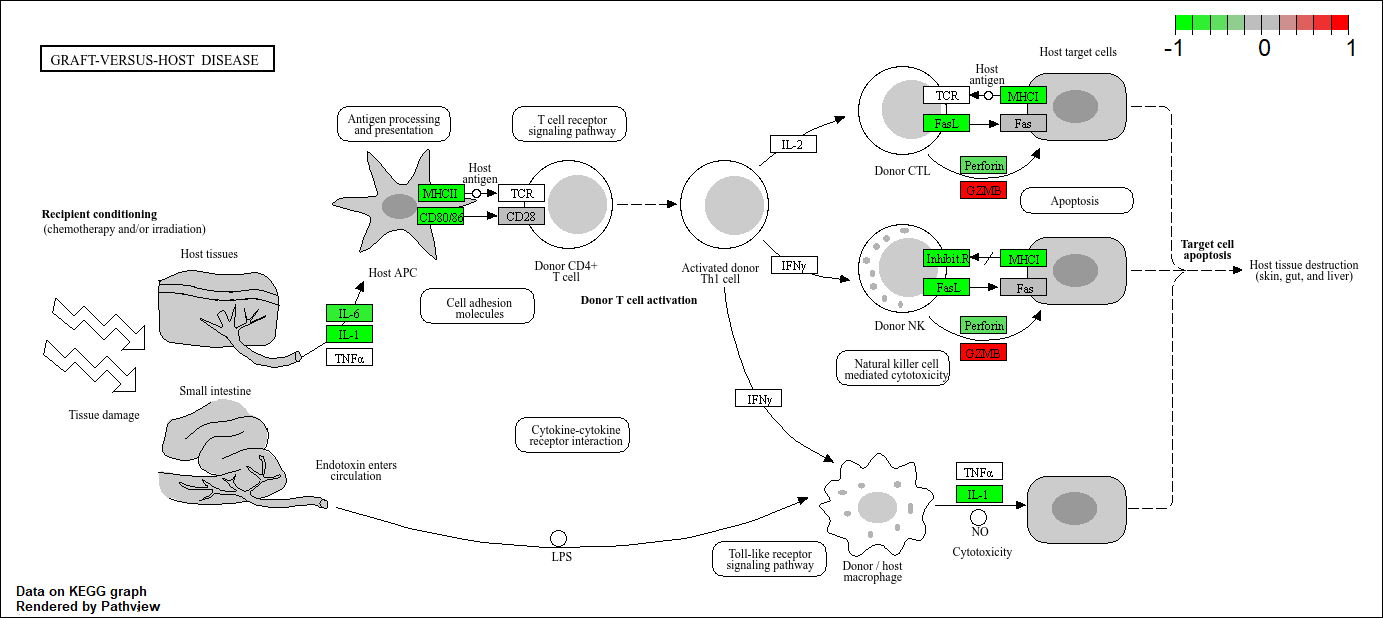

pathview(gene.data=foldchanges, pathway.id="hsa05332")
'select()' returned 1:1 mapping between keys and columns
Info: Working in directory C:/Users/anaka/OneDrive/Desktop/BIMM 143 R WORKSPACE/bimm143_github_redo/class13
Info: Writing image file hsa05332.pathview.png

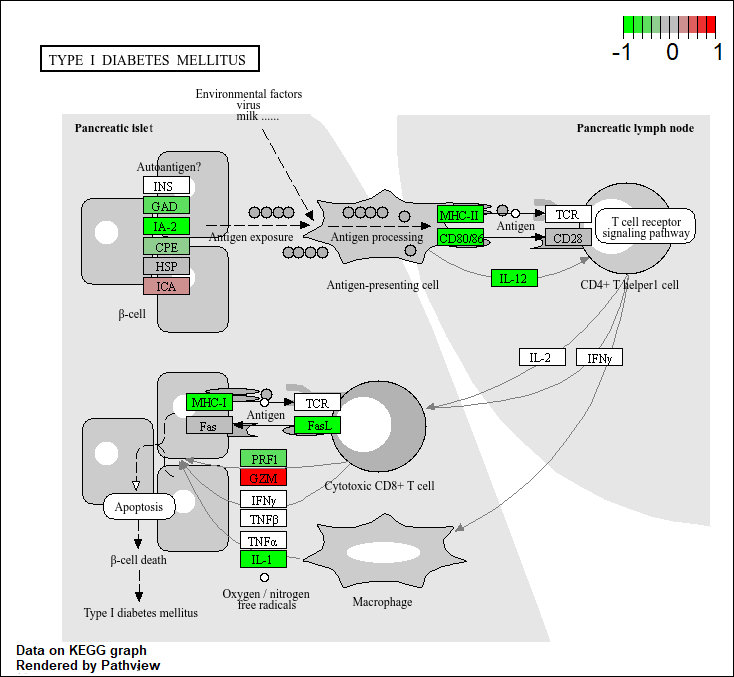

pathview(gene.data=foldchanges, pathway.id="hsa04940")
'select()' returned 1:1 mapping between keys and columns
Info: Working in directory C:/Users/anaka/OneDrive/Desktop/BIMM 143 R WORKSPACE/bimm143_github_redo/class13
Info: Writing image file hsa04940.pathview.png
